LINEAR MOTION SHAFT Shaft end support Detail View

2D/3D Data Catalogue Download(pdf)

Shaft end support

LINEAR MOTION SHAFT Shaft end support
Shaft end
support		 WK Shaft end support WK
  • - It can support both ends of linear motion shaft, which is dedicated shaft for ball bushing.
  • GO

Axis line support

LINEAR MOTION SHAFT Axis line support
Axis line
support		 S-ST Axis line support S-ST
  • - An axis line support for open ball bushing only.
  • - With standardized length, it can be assembled and used at regular distance on axis line tap shaft.
  • - As dedicated support for Asia series ball bushing, it can be combined with ball bushing block, forming slide rail unit.
  • GO
ST Axis line support ST
  • - An axis line support for open ball bushing block only.
  • - It can be used after being assembled with axis line tap shaft.
  • - As dedicated support for Asia series ball bushing, it can be combined with ball bushing block, forming slide rail unit.
  • GO
S-STU Axis line support S-STU
  • - An axis line support for open ball bushing block only.
  • - With standardized length, it can be assembled and used at regular distance on axis line tap shaft.
  • - Being combined with Asia series and Europe series ball bushing blocks, it can form slide rail unit.
  • GO
STU Axis line support STU
  • - An axis line support for open ball bushing block only.
  • - It can be assembled and used with axis line tap shaft.
  • - Being combined with Asia series and Europe series ball bushing blocks, it can form slide rail unit.
  • GO

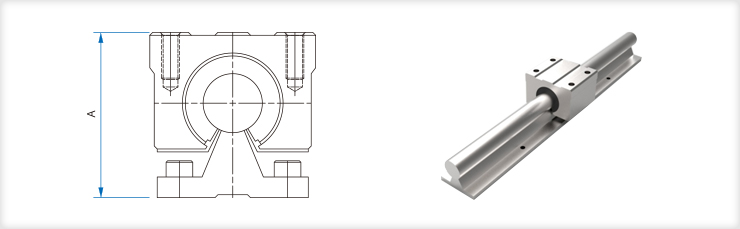

Slide rail unit
- It is composed of open block, axis line tap shaft and axis line support.
Slide rail unit
Support Info
Shaft diameter used Open block (Axis line support)
S-ST
ST		 (Axis line support)
S-STU
STU
16 SHO 16 UU 45 47
CSO 16 UU - 49
20 SHO 20 UU 50 54
CSO 20 UU - 56
25 SHO 25 UU 60 63
CSO 25 UU - 66
30 SHO 30 UU 70 76
CSO 30 UU - 78
40 SHO 40 UU 90 97
CSO 40 UU - 100
Download 2D data Download 3D data Catalogue Download(pdf) YOUTUBE
