Product Type

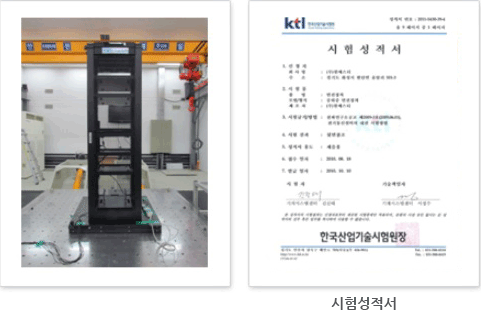

Earthquake resistance verification test

Test report
Video of earthquake resistance verification test-IRT600

Result of earthquake resistance verification test

Result of earthquake resistance verification test
Direction PEAK acceleration (g)
Vibration table Isolation table Rack upper part
X 0.85 0.06 Vibration is reduced to the level of about 1/10 0.08
Y 0.81 0.06 Vibration is reduced to the level of about 1/10 0.08

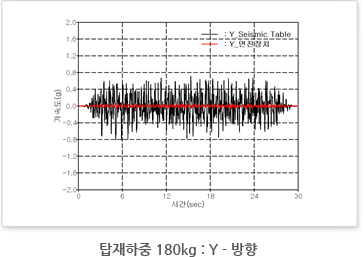

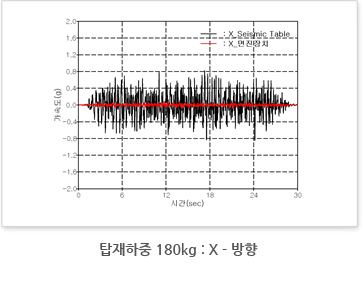

Load weight 180kg: X-direction Load weight 180kg: Y-direction

Standard of goods

Standard of goods
Direction IRT100 IRT300

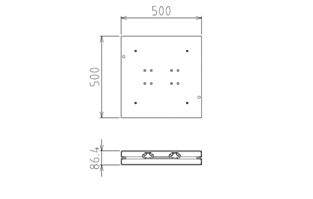

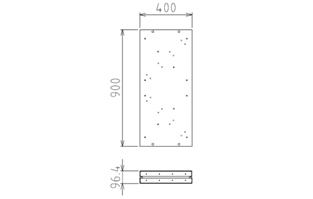

Size of goods Size of IRT100 goods Size of IRT300 goods
500(W) X 500(D) X 86.4(H) 400(W) X 860(D) X 96.4(H)
Mass of goods 27kg 42kg
Load weight 100kg 300kg
Isolation direction 360C horizontal direction
Maximum displacement +-125mm +-150mm
Standard of goods
Direction IRT600 IRT1000

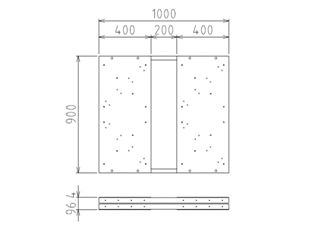

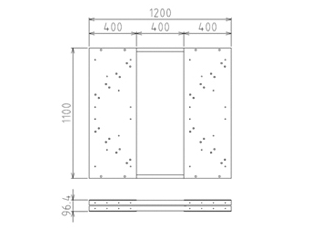

Size of goods Size of IRT600 goods Size of IRT1000 goods
1000(W) X 860(D) X 96.4(H) 1200(W) X 1100(D) X 96.4(H)
Mass of goods 95kg 105kg
Load weight 600kg 1,000kg
Isolation direction 360C horizontal direction
Maximum
displacement		 +-150mm
